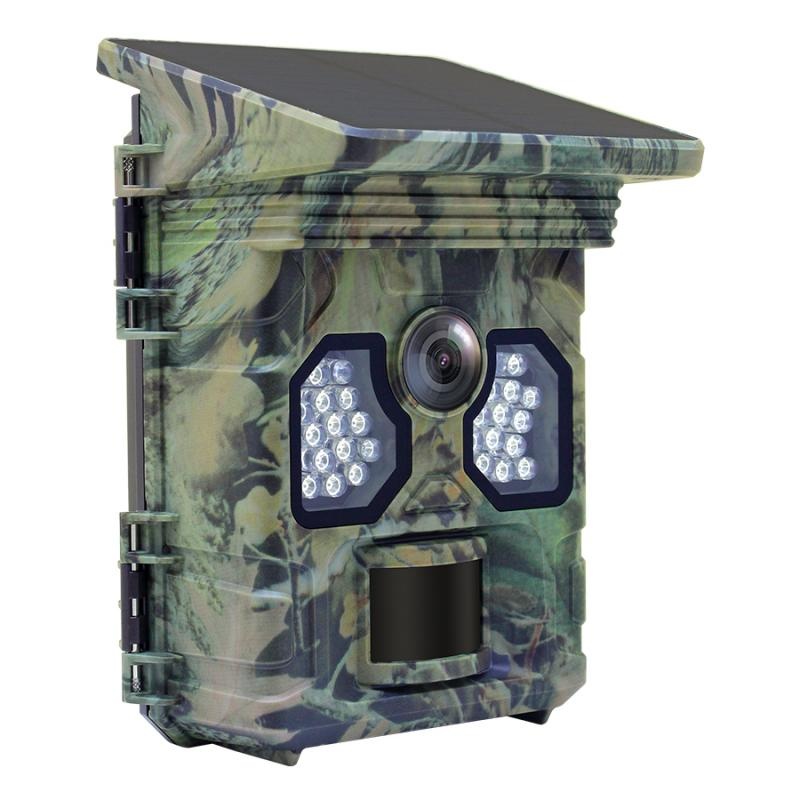

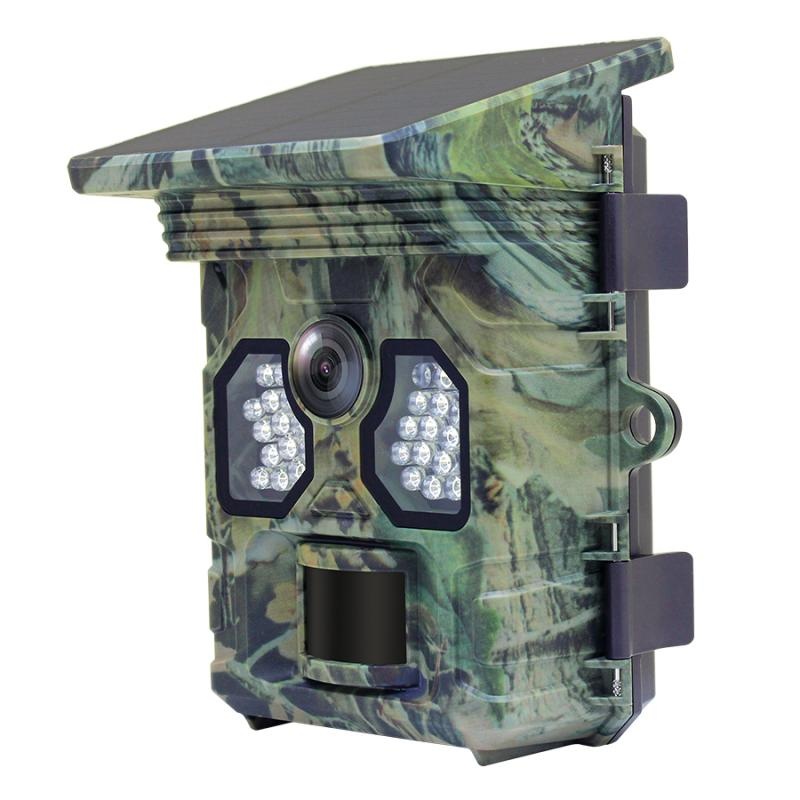

The RS20 trail camera is your affordable entry into solar-powered surveillance. With 4K recording, 48 million pixels and solar charging, it ensures extended battery life. The dual power supply accommodates lithium and alkaline batteries. Featuring a 2.0" LCD, 60° PIR detection, and a rapid 0.4s capture, it strikes a balance between simplicity and functionality. With a 12-month standby time and IP66 waterproofing, the RS20 is your cost-effective choice for reliable trail camera performance.
Item NO.:
RS20Order(MOQ):
100Payment:
T/TProduct Origin:
CHINAColor:
CAMOUFLAGEShipping Port:
FOB SHENZHENLead Time：
20~30DAYSProduct Specificaton:
• Lens specifications: f=4.0mm F/NO=2.0 FOV=90°
• Photo resolution: 5MP, maximum 48MP (interpolated)
• Supports 4K ultra-high-definition video recording
• Video Resolution:
3840×2160@30fps 2560×1440@30fps 1920×1080p@30fps 1280×720p@30fps

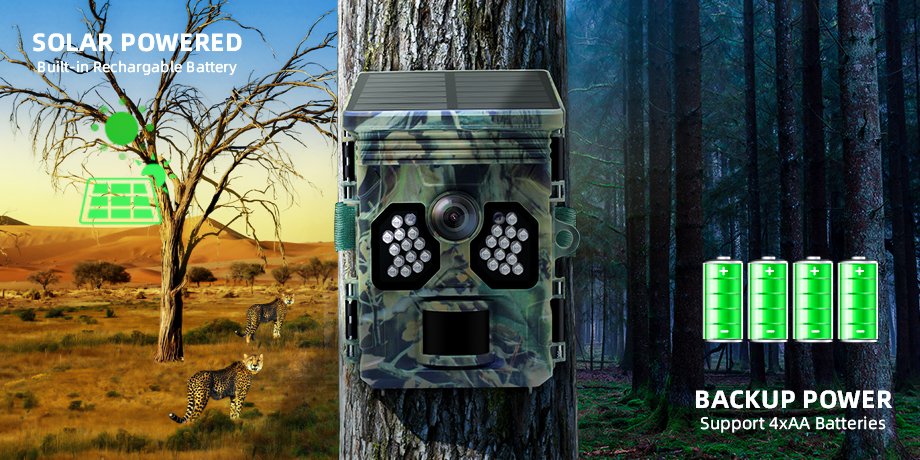

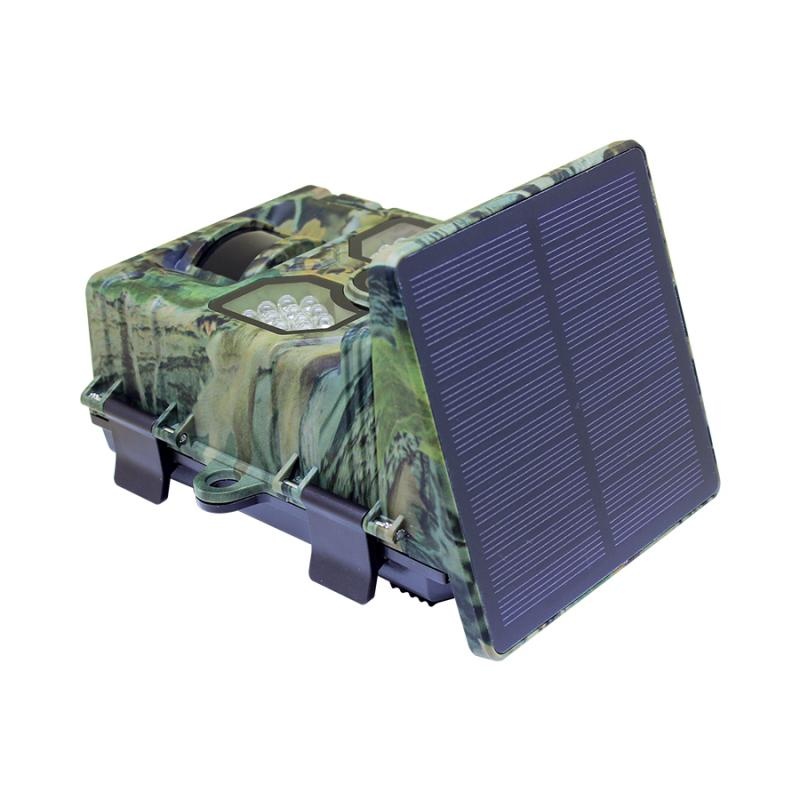

• Solar panel charging function for long-lasting battery life
• Dual battery design with built-in lithium battery and external alkaline battery
• Industrial-grade lithium battery can operate in temperatures as low as -20°C
• Intelligent dual-battery switch system with priority given to lithium battery and backup from alkaline battery

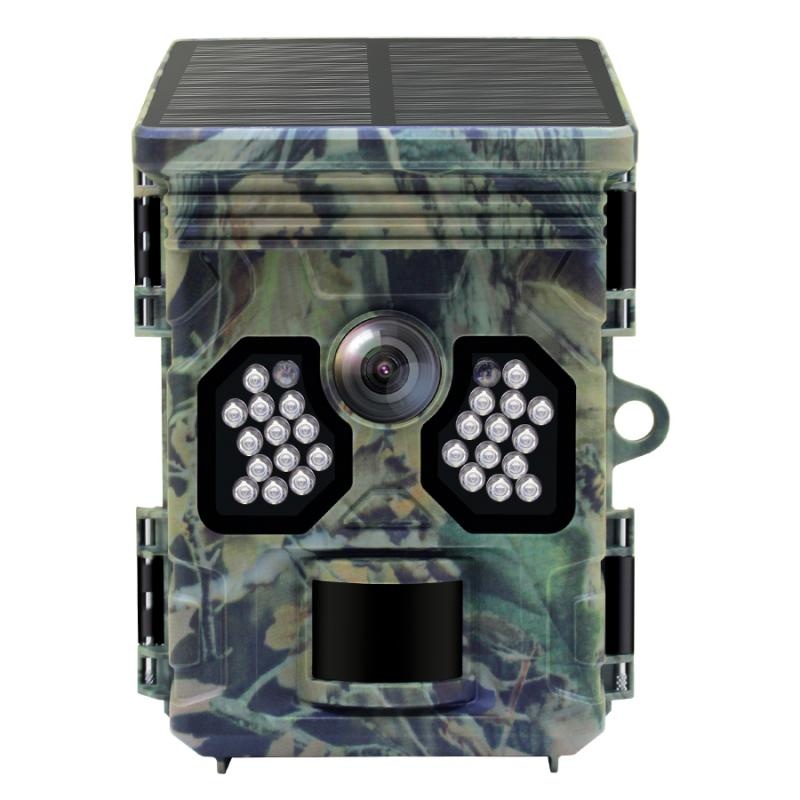

• 26 infrared flashlights with effective range of up to 20 meters (850nm)

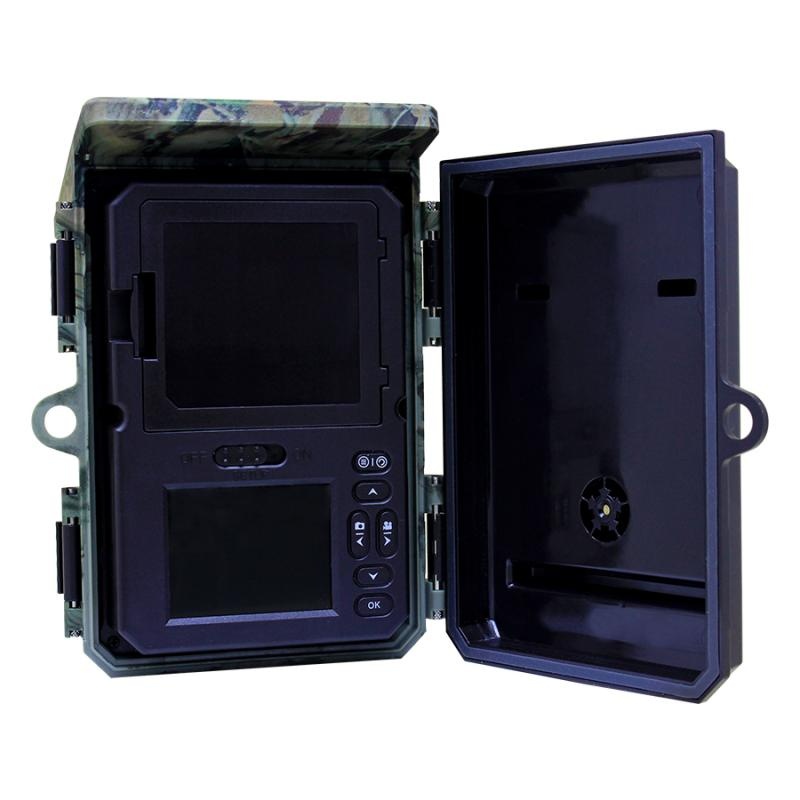

• 2.0 inch IPS 320×240(RGB) dot TFT-LCD Display

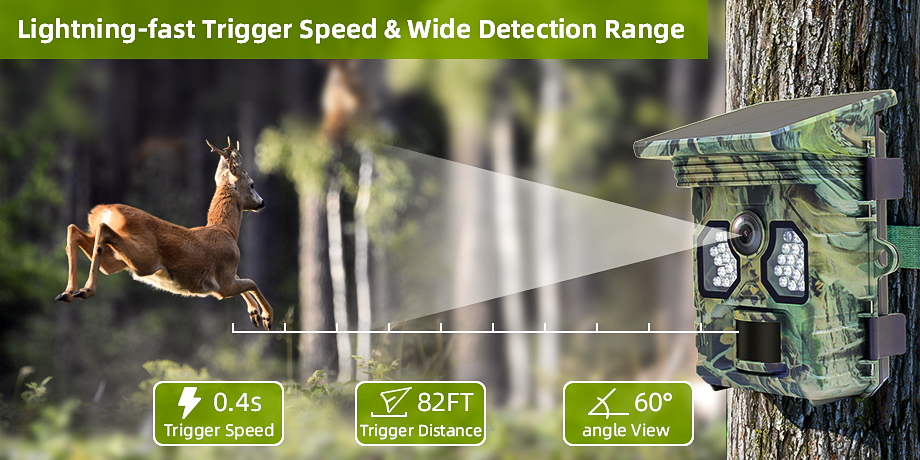

• PIR (Pyroelectric Infrared) detection angle: 60 degrees
• PIR (Pyroelectric Infrared) detection distance: 20 meters
• Trigger speed: 0.4 seconds
• Water and dust-resistant with IP66 design
• Convenient system menu operation
• Watermarks for time, date, temperature, lunar phase, and camera name displayed on photos
• Built-in microphone and speaker
• USB 2.0 TYPE-C interface
• Maximum support for 128GB TF storage card (not included)
• Super low standby current for up to 12 months of standby time
A best choice to close to the wildlife
Hunting: A powerful tool tailored for hunters, helps you easily search for prey and return fully loaded on joyful hunting trip!
Farm Monitoring: A reliable assistant to help you monitor your farm, prevent strangers from slipping into the farm.
Wildlife Monitoring: Suitable for researchers, wildlife lovers, to take you into the magical and mysterious animal world.
Home Security: This trail camera also acts as a home monitor, which will be a reliable security guard for your home.
FAQ
|
All problems happened on the camera |
Default operations as below A. Change 4pcs new batteries. B. Format the SD card by the camera. C. Reset the camera by MENU “Default Set”. |
|
The camera will not turn on |
A. Please check the batteries if they are installed in proper way. B. Check if the battery capacity is low or exhausted. If so, please replace them with new batteries. |
|
The camera turns off automatically |
A. Please check whether the battery capacity is low or exhausted. If so, change new batteries. B. Please check if SD card is full. If so, transfer images and videos to your computer or delete some files in the Replay Mode. |
|
The screen shows “Card Error” |
A. Change a new SD card. B. Please ensure that SD card is with class 10 standard or higher level. C. Please use the camera to format SD card at the first time. |
|
Videos are choppy or jumpy when played on a computer |
A. Ensure that the computer system requirements are met. B. Ensure AVI format Video clip can be played on your computer. |
|
The image is not clear |
A. Please ensure that the lens is not dirty. |
|
The camera does not take images of record videos |
A. The memory card is not formatted properly. Format the SD card again or use a new SD card. B. Check if the battery capacity is low or exhausted. If so, please replace them with new batteries. |
|
Camera can not turn off |
Once such malfunction occurs, remove all the batteries and insert the batteries again. |
|
Forget the password |
Please put genaral password “OPEN”. |
|
Short battery life |
A. Set “Quiet time”more than 1 minute. B. Set “Video Length” within 10 second. C. Don’t select working mode as “Timer Photo” and “Timer Video” |
|
Replay videos without sound |
Default “Sound record” as OFF, please select “ON” |
|
Couldn’t connect with PC |
A. Move out all batteries and connect with PC again. B. Check whether the USB cable is damaged? If yes, please change another USB cable with the distributor. |
Important Tips:
1. Micro SD card and
batteries are not included in the package. It requires SD card ( up
to 128GB) is recommended.
2. Please format the memory card before using.
3. Please remove the protective foil from the
camera lens to get the best result.
4. To power this trail camera, simply insert 4 batteries. Ensure all 4 batteries are placed in the upper or lower
part.
